ARAMIS - SENSOR FOR HIGH-PRECISION MOTION AND DEFORMATION ANALYSIS

The ARAMIS product portfolio comprises sensors for dynamic measurements of 3D coordinates, 3D displacements and 3D surface strain. Based on triangulation, the systems provide precise 3D coordinates for full-field and point-based measurements.

OPTICAL 3D MOTION AND STRAIN ANALYSIS

Fast and easy test procedure

ARAMIS sensors measure statically or dynamically loaded specimens and parts by using a contact-free and material-independent method based on the principle of digital image correlation (DIC) – without time-consuming and expensive preparations of the test object.

High-precision measurements of small and large objects

The system offers stable solutions for the analysis of specimens of just a few millimeters up to structural components of several meters. The measuring resolution reaches down to the submicrometer range independent of the geometry and temperature of the specimen.

Ideally suited for product development, materials research and component testing

The analyses provide information on material characteristics and the behavior of components under load. These results form the basis for product durability, geometrical layout, reliable numerical simulations and their validation.

ARAMIS GENERATES PRECISE DATA

  • 3D displacements
  • 3D deformations
  • Velocities and accelerations
  • Surface strain
  • Digital image correlation (DIC)
  • Material properties for simulation
  • Evaluation of 6 degrees of freedom (6DoF)
  • 3D coordinates

OVERVIEW OF ARAMIS SENSOR CONCEPTS

ARAMIS 3 Camera System

Robust design for high-end applications
See more

ARAMIS Adjustable

Modular and flexible measuring system for research and industry
See more

ARAMIS FOR TESTING APPLICATIONS

Integration into the testing environment

The integrated GOM Testing Controller controls not only the stage acquisition but also the light management. Furthermore, a software-based programming interface is integrated for preset or user-defined measuring sequences.

Multi-sensor
Combining several ARAMIS sensors allows for measurements from various perspectives with different measuring areas. The measurements are captured and evaluated in one common coordinate system at the same time.

Large measuring volume

Also for dynamic measuring of complex or large applications, ARAMIS makes it possible to evaluate, for example, the vibration behavior of individual blades of wind power plants under heavy load.

Long-term online measurement

Online component testing is used, for example, in durability tests, fatigue tests as well as in wind tunnel tests and vibration analysis. The measuring results can be viewed online or processed live by other programs.

ARAMIS Kiosk Interface – automated check

ARAMIS Kiosk Interface is a user interface for automated evaluation of tensile tests complying with different standards. With minimized user interaction, standardized testing procedures can be carried out fast, easily and repeatable for measurement series with numerous specimens.

Verification of numerical simulation

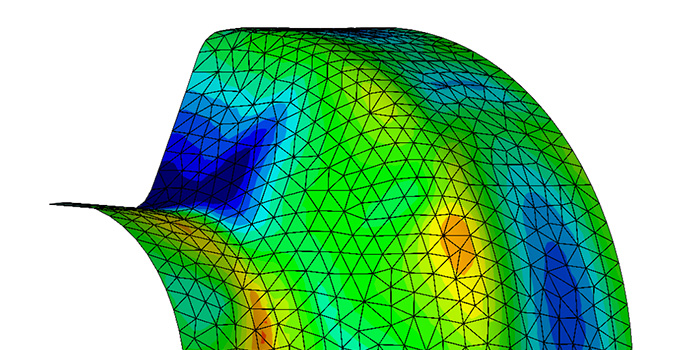

ARAMIS sensors provide information on material properties of parts. This data is used as input parameters for simulation computations and as reference size for optimization and verification. The GOM software allows importing FE data from formats including ABAQUS, LS-DYNA and ANSYS as well as aligning them to the measuring data and in space.

ARAMIS PROFESSIONAL SOFTWARE - DIGITAL IMAGE CORRELATION

aramis-professional-logo

The ARAMIS Professional software provides the complete workflow from measuring data acquisition via analysis up to reporting. It combines synchronized acquisition of images and analog data of the ARAMIS sensors with the evaluation functionality of the GOM Correlate software.

See more
Phần mềm ARAMIS Professional - Tương quan hình ảnh kĩ thuật số

APPLICATIONS

Automotive testing

Aerospace testing

Biomechanics testing

Identifying operational deflection shapes and mode shapes

Materials testing

Verification of numerical simulations

Determination of forming limit curves

Shear testing

High speed component testing
